DER High Frequency and High Voltage Resonant Capacitor
It is widely used in series and parallel resonant circuits of various intermediate frequency and super-audio induction heating power supply and other electronic equipment.
Dielectric:
Structure: Special material for wireless charging resonant capacitor and inner series structure of metallized film
Packaging: flame retardant Mylar tape, flame retardant (94V-0) epoxy packaging
Lead-out: Tin-plated copper nut or sheet lead-out
High ripple current capability
High stability, low loss
Self-healing
Working frequency: 20KHZ～85KHZ ～150KHZ ～200KHZ
- Performance
- Shape and size
- Typical circuit diagram
- Waveforms
技術(shù)性能/Specifications
|
引用標(biāo)準(zhǔn)/Reference standards
|
IEC 61071 60068
|
|
工作溫度范圍/Operating temperature range
|
-40~125℃
|
|
容量范圍/Capacitance
|
0.0005~4μF
|
|
額定電壓 /Rated Voltage
|
1200-8000V.AC
|
|
容量偏差 /Tolerance
|
±5% 10%
|
|
極間耐電壓 /Test voltage between terminals
|
1.5Ur(DC) 10s 25±5℃
|
|
極殼耐電壓 /Test voltage between terminals and case
|
12000V 50Hz 60S, 25±5℃
|
|
損耗角正切/Dissipation factor
|
tgδ≤6×10-4 at 25±5℃ , 1KHz
|
|
絕緣電阻/Insulation resistance
|
C*IR≥30000S, at 100VDC,25±5℃,60S
|
|

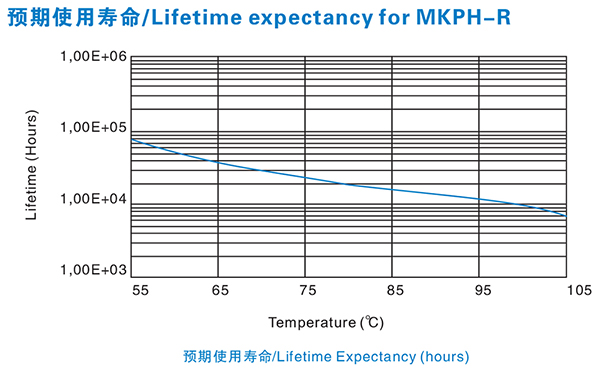

預(yù)期壽命/Life expectancy
|
100000h at Ur and 70℃
|
