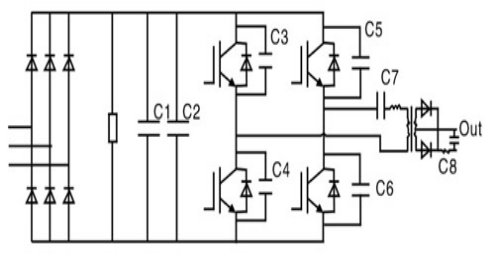

技術性能/Specifications 電容器：C3~C6
|
引用標準/Reference standards
|
IEC 61071 60068
|
|
工作溫度范圍/Operating temperature range
|
-40~85℃
|
|
容量范圍/Capacitance
|
0.1~10μF
|
|
額定電壓 /Rated Voltage
|
630~3000V.DC
|
|
容量偏差 /Tolerance
|
± 5% 10%
|
|
極間耐電壓 /Test voltage between terminals
|
1.5Ur(DC) 10s 25±5℃
|
|
極殼耐電壓 /Test voltage between terminals and case
|
3000V 50Hz 60S, 25±5℃
|
|
損耗角正切/Dissipation factor
|
tgδ≤4×10-4 at 25±5℃ , 1KHz
|
|
絕緣電阻/Insulation resistance
|
C*IR≥30000S, at 100VDC,25±5℃,60S
|
|

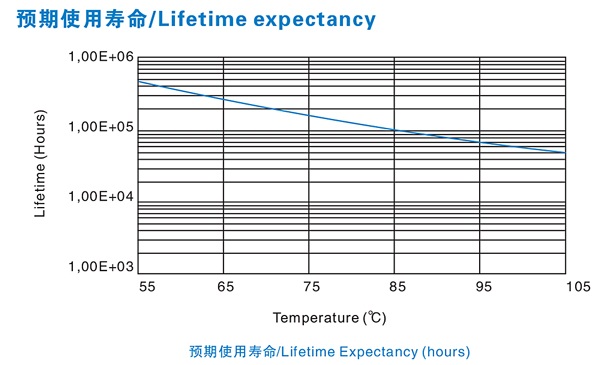

預期壽命/Life expectancy
|
100000h at Ur and 70℃
|
C3-C6
