技術(shù)性能/Specifications
|
引用標準/Reference standards
|
IEC 61071 60068
|
|
工作溫度范圍/Operating temperature range
|
-40~85℃
|
|
容量范圍/Capacitance
|
100~2750μF
|
|
額定電壓/ Rated Voltage
|
900~4000VDC
|
|
容量偏差 /Tolerance
|
±5%, ±10%
|
|
極間耐電壓 /Test voltage between terminals
|
1.5Ur(DC) 10s 25±5℃
|
|
極殼耐電壓/ Test voltage between terminals and case
|
3000V 50Hz 60S, 25±5℃
|
|
損耗角正切/Dissipation factor
|
tgδ≤1×10-3 at 25±5℃ , 100Hz
|
|
絕緣電阻/Insulation resistance
|
C*IR≥5000S, at 100VDC,25±5℃,60S
|
|

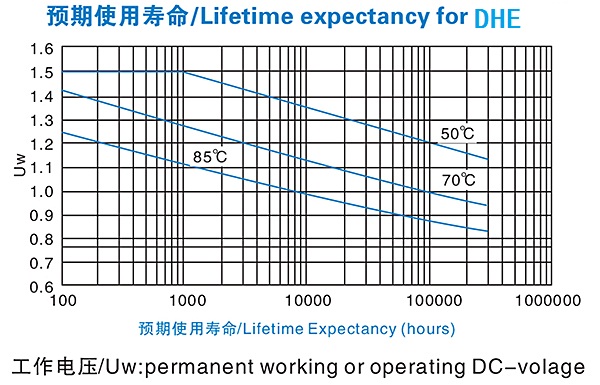

預(yù)期壽命/Life expectancy
|
100000h at Ur and 70℃
|
過壓運行/Protection against over voltages
|
1.1×Un
|
30%of the service period
|
|
1.15×Un
|
30min/d
|
|
1.2×Un
|
5min/d
|
|
1.3×Un
|
1min/d
|
|
1.5×Un
|
100ms no more than 1000 times
|
