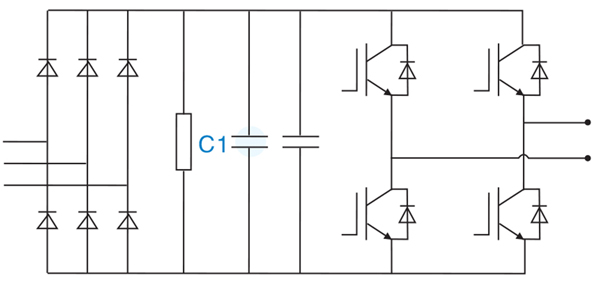

DC-Link and coupling /filtering for UPS，SMPSs, inverter,
welding machine power.
技術性能/Specifications
引用標準/Reference standares
IEC 61071 60068
工作溫度范圍Operating temperature range
-40~85℃
容量范圍Capacitance
5.0~90μF
額定電壓 Rated Voltage
500~1200VDC
容量偏差 Tolerance
±5%, ±10%
極間耐電壓 Test voltage between terminals
1.5Ur(DC) 10s 25±5℃
極殼耐電壓 Test voltage between terminals and case
3000V 50Hz 60S, 25±5℃
損耗角正切Dissipation factor
tgδ≤1×10-3 at 25±5℃ , 1KHz
絕緣電阻Insulation resistance
C*IR≥5000S, at 100VDC,25±5℃,60S

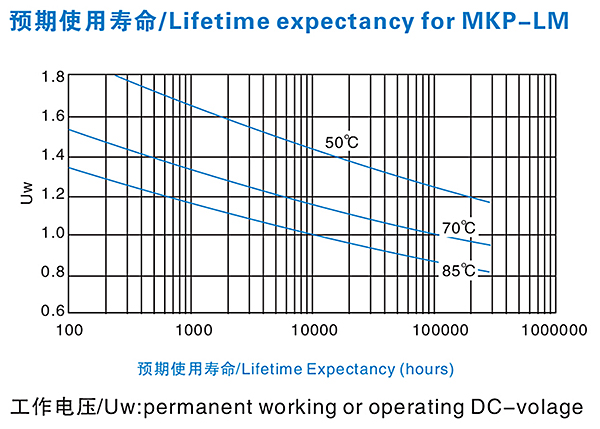

預期壽命Life expectancy
100000h at Un and 70℃
